Application of Bag Air Duct in Pharmaceutical Warehouses

Use of Bag Air Duct in Pharmaceutical Warehouse

The application superiority of fiber Fabric Air Duct in medical logistics warehouses:

The demand characteristics of Medical Logistics Warehouses: According to the National GSP Management Policy, the drug supervision and management departments have clear requirements for the temperature control and detection of logistics warehouses. The temperature of cold storage is 2 ~ 10°C, the temperature of cool storage is less than 20°C, the temperature of normal storage is 0 ~ 30°C, and the relative humidity of storage is kept between 45 ~ 75%. The problem of air-conditioning supply air in logistics warehouses also causes many pharmaceutical companies to attach great importance to it. At the same time, to ensure uniform temperature, it is necessary to pay attention to the installation convenience, low-cost maintenance, and energy-saving effects. In order to ensure the quality of medicine storage, the air distribution in the warehouse should be uniform and orderly, achieving the uniform distribution of indoor temperature.

1. Viaduct Working Condition:

This part of the site is a typical high space, with an area of 5000 ~ 15000 square meters, no ceiling, and a height usually of 18 ~ 22 meters. Air Outlet: Jet-type, multi-row holes, including 6 o'clock direction of the hole for 10 meters below the area; pipes on both sides of the hole for 10 meters above the shelf area for air supply.

2. Flat Warehouse Working Conditions:

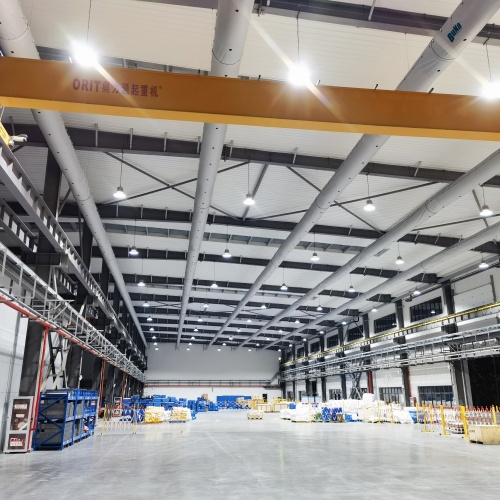

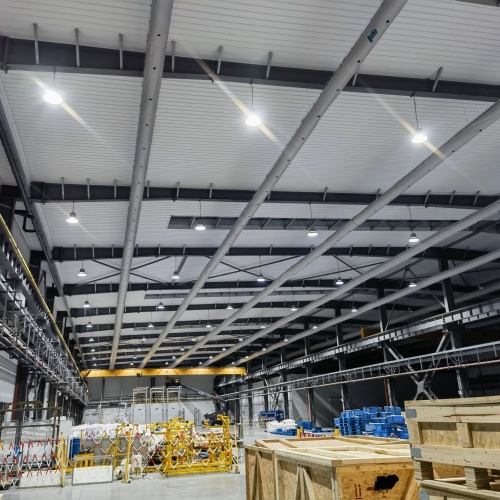

The height of this part of the site is usually 4-6 meters, with no ceiling, and the area is larger than the three-dimensional warehouse. Piping Arrangement: Perpendicular to the shelves, parallel to the light belt, with pipe diameters usually controlled between 400-700mm. This design ensures the beauty of the layout while avoiding air supply dead zones and detention areas. The above arrangement depends on the site space, air conditioning position, single cooling or dual systems.

3. Turnover Area Working Conditions:

The area is relatively crowded, mainly providing air conditioning and air supply for workers. The use of infiltration and multi-row holes ensures a uniform and comfortable air supply effect. After the airflow exits the small hole, it quickly reaches the working area below 2 meters. In the short stay time above, the air conditioning is concentrated in the working area, thereby achieving an energy-saving effect. Since traditional air ducts cannot meet the uniform air supply requirements of logistics warehouses, the pharmaceutical logistics industry is now promoting and applying fiber fabric air ducts.
